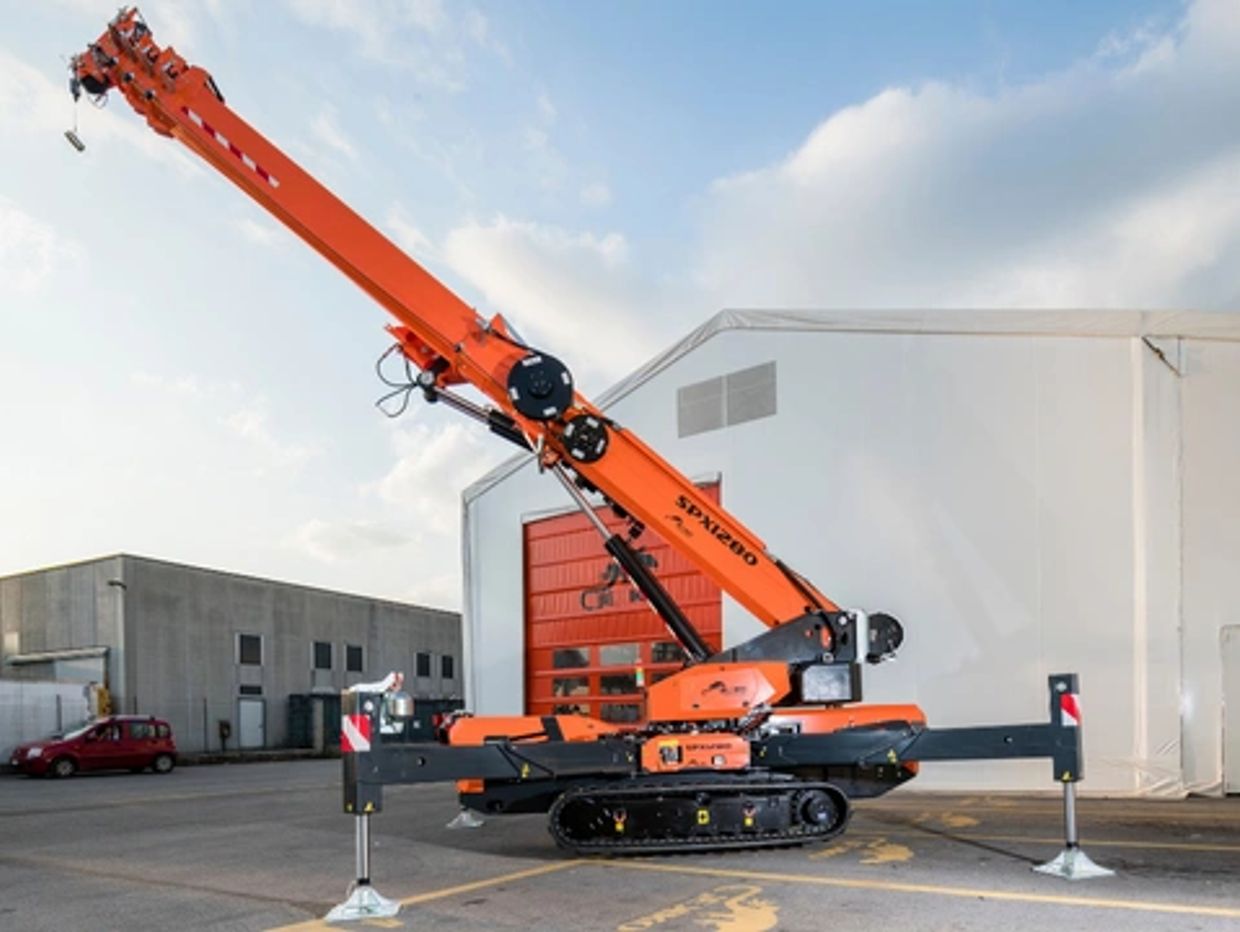

SPX 1280

---

• 17,630 lb Lifting capacity
• 87' 7'' Max tip height
• Dimensions 19'2'' x 4'9'' x 6'9''
• Powered by Bi-Energy
• Weight 15,650 lb.
• 3,300 lb. counterweight included

• Up to 4,400 lb. lifting capacity
• 360° turret rotation
• Extendable crawler for improved driving

• Full LMI system
• Anti crash system
• Feedback on display

• Optimal tip height/footprint ratio
• 87' 7'' max tip height
• Only 15' 1'' x 15' 1'' max footprint
• Removable counterweight: minimizes ground pressure

Winch- 410' 1'' rope

• 3,300 lb. capacity single fall/ 17,639 lb. 6 falls
• Hook block stowing

Hydraulic jib- 3,300 lb. SWL

• Hook or winch
• +10/-60° angle, up to 25' 3'' length

• Dynamic load sway control
• Automatic speed adjustment to ensure smooth and precise maneuvers
• Automatic movement limitations to maximize safety
• Components engineered to maximize stiffness and load stability
