MPK 06.2

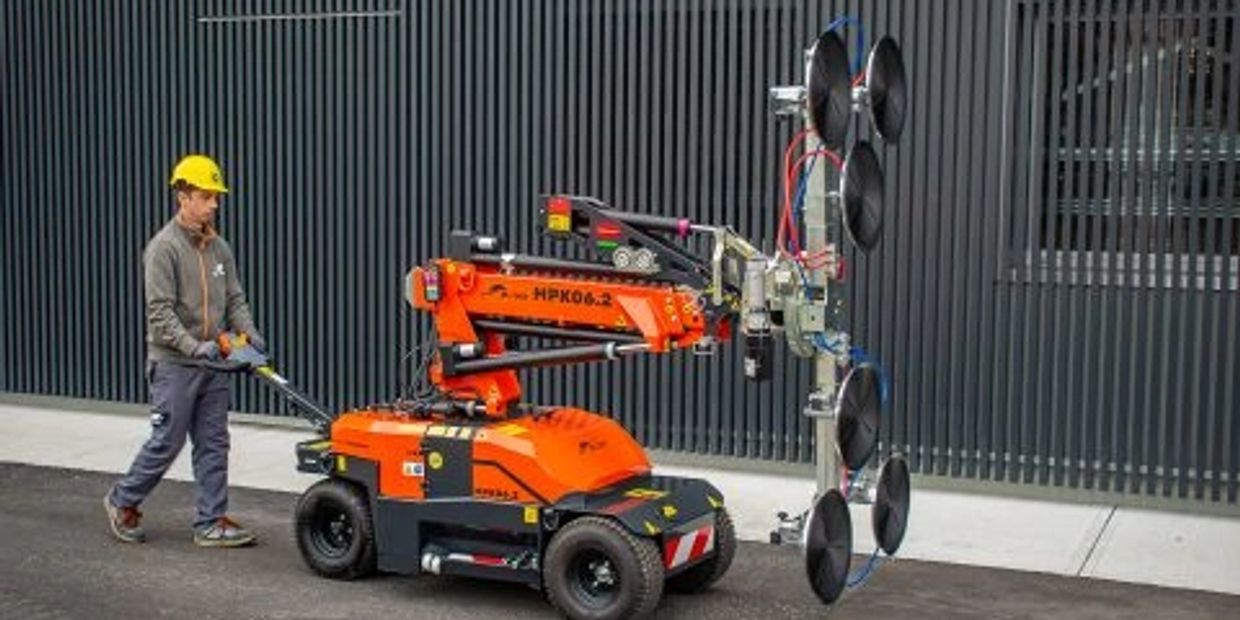

MPK06.2 is an electric 2in1 minipicker: a 1,320 lbs capacity glass handling robot and pick & carry crane all in one machine. The new improved vacuum manipulator with modular and customisable layout allows to easily position glass, marble, monopanels or smooth panels of any kind.
MPK06.2 is not only a glass installation robot! With hook and adjustable searcher hook, MPK06.2 is a 1,320 lbs pick & carry electric crane with a long-duration battery ideal for emission-free and noise-free indoor liftings.

    Specifications

    Modular Ballast

    Modular Ballast

    • 1,320 lb. Lifting capacity
    • 14' 1'' Max tip height
    • Dimensions 7'10'' x 2'5'' x 4'9''
    • Powered by Battery
    • Weight 2,020 lb.
      • 1,600 lb. machine
      • 420 lb. removable ballast

    Modular Ballast

    Modular Ballast

    Modular Ballast

    • Easily removable ballast modules
    • Operates with reduced ballast
    • Automatic lifting capacity adjustment
    • 420 lb. total weight

    Boom Mobility

    Modular Ballast

    Vacuum Manipulator

    • Turret side rotations +/- 10°
    • -21° to +55° boom angle
    • Double boom extension

    Vacuum Manipulator

    Easy to Drive Everywhere

    Vacuum Manipulator

    • Up to 6 pads, modular layout
    • Electrically operated via wired control
    • Vacuum pump onboard
    • Two independent vacuum circuits
    • 360° rotation, lift, and swing
    • "Blow-off" function for easy release

    Fully Electric

    Easy to Drive Everywhere

    Easy to Drive Everywhere

    • Battery powered, lead-acid type 25 V 155 Ah
    • Minimal maintenance cost
    • Emission-free indoor operation
    • On board 110V or 230V fast battery charger
    • Runtime over 1 workday

    Easy to Drive Everywhere

    Easy to Drive Everywhere

    Easy to Drive Everywhere

    • Front-wheel drive with differential
    • Wide steering angle
    • Side stabilizers
    • Off-road tires- foamed puncture-proof
    • Non-marking white tires for indoor- optional

    Call or Text for Pricing

    208-936-9950
